Full Body Diagnostic Imaging Acquisition
From digital x-ray systems to innovative CT systems, MyVet Imaging is the veterinarian’s preferred vendor for their diagnostic full body imaging practices.
We strive to be the industry leader and preferred partner by providing full body imaging solutions and services that ultimately enhance the quality of patient care with accumulated technology.
- MyVet CT i3D | Spiral linear CT Download brochure
- MyVet Table i72W | Elevating x-ray table Download brochure
- MyVet Table 32+ | Fully integrated x-ray table Download brochure
IMPROVED WORKFLOW THROUGH IMMEDIATE IMAGE CAPTURE
MyVet CT i3D
The innovative MyVet CT i3D with spiral linear detector technology brings multi slice CT image quality at a very affordable total cost of ownership right to your practice. Unique sensor design and proprietary image processing development provide you with high image quality especially in soft tissue thoracic and abdominal studies.
Simplified operation and imaging protocols optimizes staff workflow, productivity, and diagnostic results. Fast scan times, MPR and standard 3D volume rendering functionality facilitates obtaining diagnostic results as well as minimizing animal time under anesthesia.
- High image quality at low x-ray dose
- Standard 3D CT mode
- Superior soft tissue image
- Narrow slice thickness
- Large FOV
- Fast installation and easy set up
MyVet CT i3D | Features
Advanced Technology Application
The new standard for veterinary computed tomography is the MyVet CT i3D, incorporating innovative spiral linear technology. The linear detector acquires thin image slices within a large field of view as the x-ray tube circles around the advancing table.
Large Bore Design In A Compact Footprint
A large bore accommodates medium/large dogs and the elevating table facilitates animal positioning in center of bore to maximize image acquisition. The overall compact system design provides a more efficient and space-saving work environment.
Reduce Scatter Radiation, Obtain High Image Quality
Unique detector design reduces scatter radiation resulting in better soft tissue visualization. A 0.4 / 0.8 mm acquired and 0.1 – 30 mm recon slice thicknesses maximize diagnostic information.
Clinical Versatility
Canine | Pelvic Fracture, 3D
Canine | Urinary tracts
Canine | Lateral ear canal resection
Canine | Cervical legion, 3D
Feline | Orbital mass

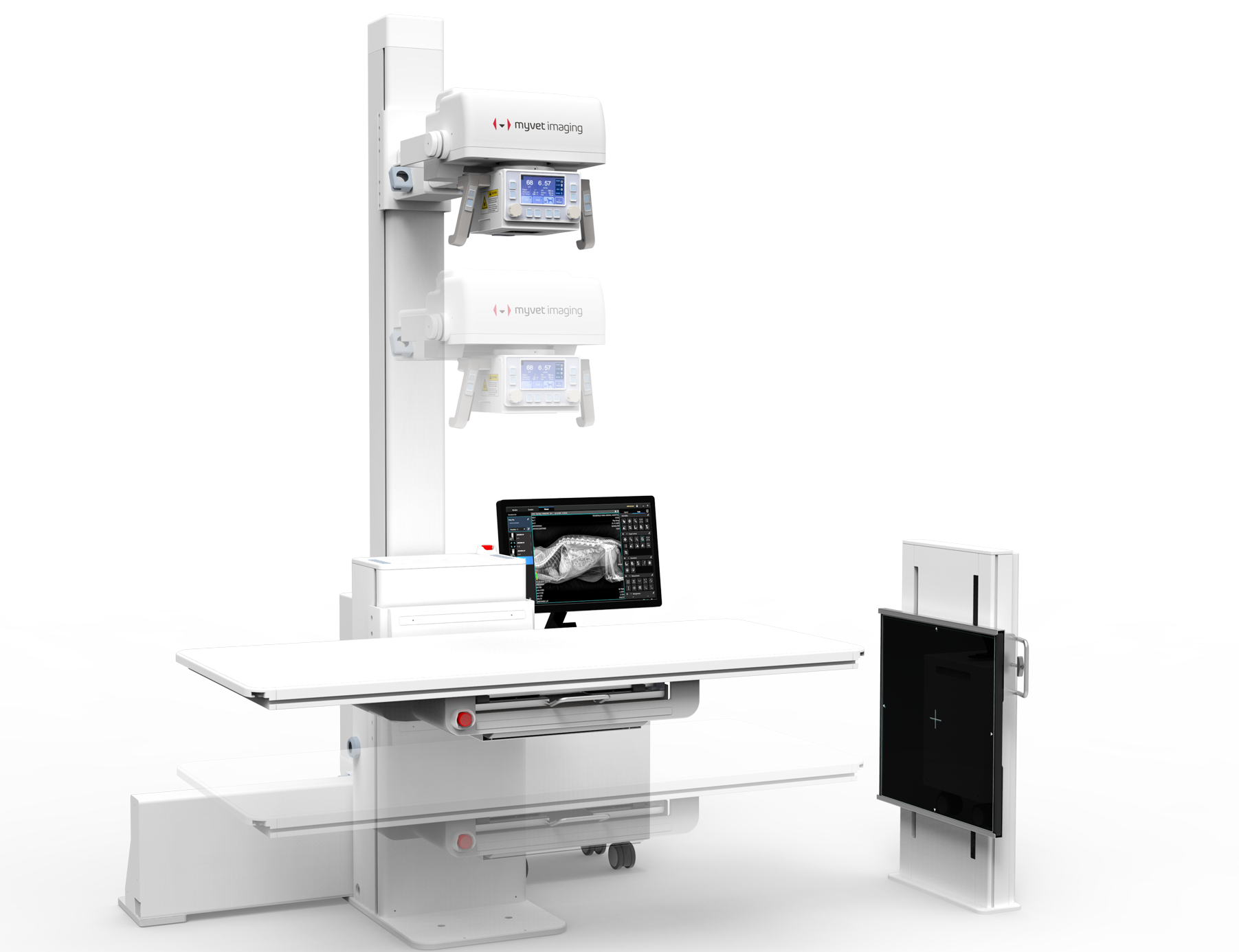

MyVet Table i72W
i72W, the MyVet x-ray table is a revolutionary design that delivers silent elevation to provide comfort and stability for the patient. The MyVet x-ray table is a cost-effective and workflow-efficient approach to veterinary digital radiographic imaging for your practice.
17x17 inch Large Format Flat Panel Detector
The large format 17”x17” detectors provide a faster and more streamlined approach to digital radiography imaging.
Unlike a traditional 14”x17” film size, a full field of view 17”x17” format eliminates the need to rotate a detector for large animals and body parts.
Download Brochure Product inquiry
MyVet Table i72W | Features
1717 Digital Flat Panel Detector
The 17”x17” detectors utilize a combination of proprietary TFTs and high quality Cesium Iodide (CsI) scintillators which, along with a 127-micron pixel pitch (3.9 lp/mm), assures delivery of exceptionally sharp, high quality images.
MyVet X-Ray Table i72W Delivers More Convenience
The 17”x17” wireless flat panel detector is easy to connect in the Bucky tray. A magnetic connector in the Bucky makes it easy to maintain a constant battery charge.

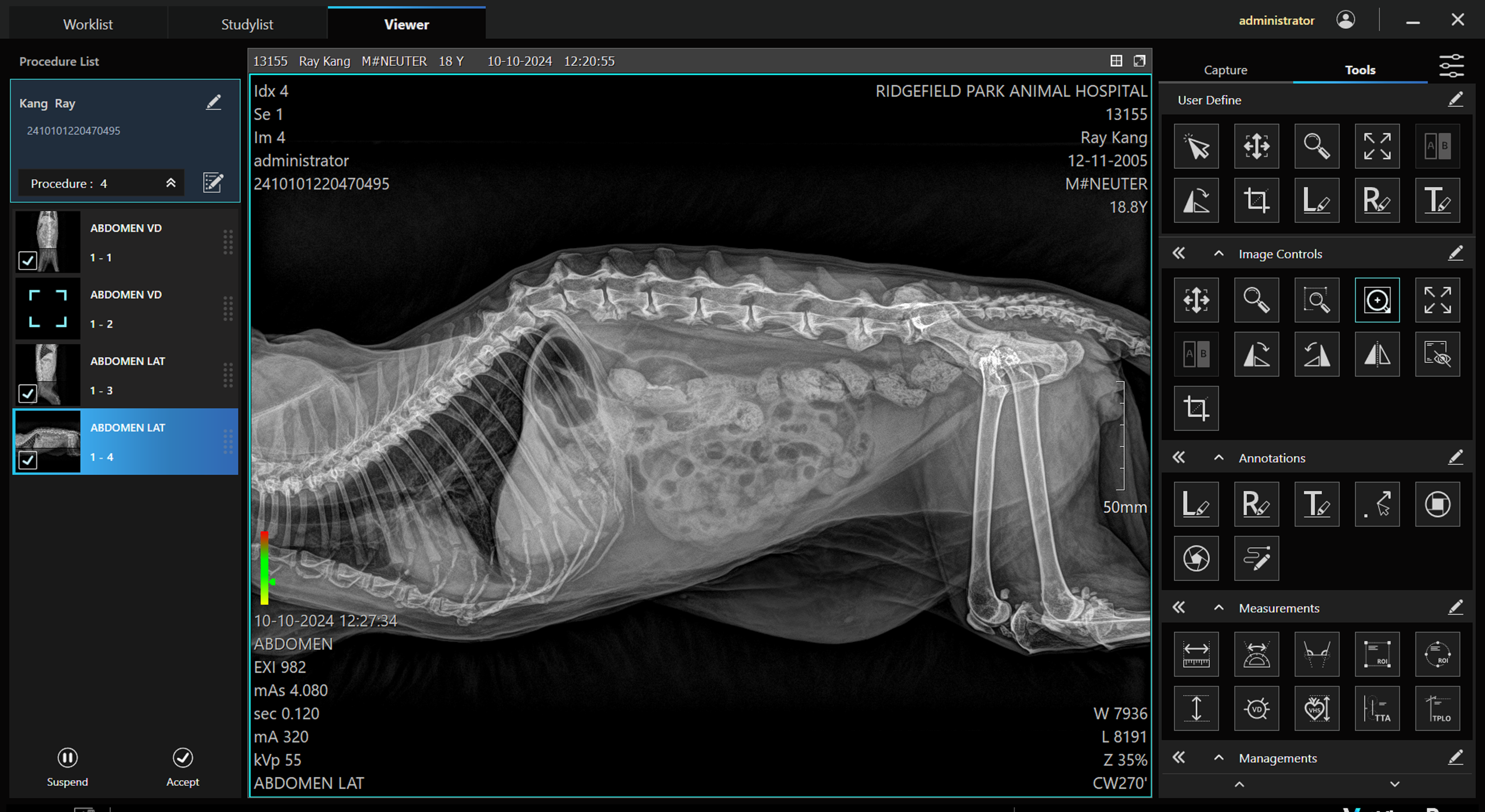

Veterinary Acquisition Software
VetView a complete image management software featuring easy data searching, fast image acquisition and user friedly functions. The functions include image viewing, reprocessing, optimzing and archiving.
Elevating Digital Radiographic Table
- 40 inch / 72 inch horizontal beam orientation maximizes animal comfort
- Silent mechanical movements reduce animal startle reflexes that prevent swift exam completion
- Charging Bucky
- Tabletop lowers to less than 11 inch from a floor, eliminating the need to lift non-sedated animals into position
- Upright stand which provides you easily obtain true weight bearing or air/fluid level views
- Easy, foot switch activated table operation

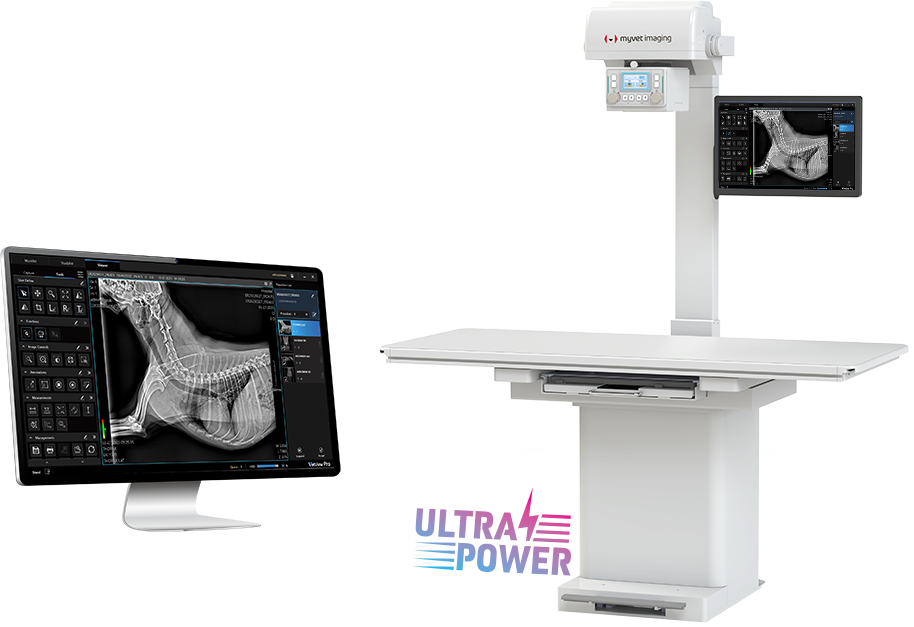

MyVet Table 32+
MyVet table 32+ is a compact and fully integrated X-ray table system. The 32+ delivers significant energy rapidly, facilitating the generation of X-rays through high-power bursts. The widerange 4-way floating tabletop and tethered 17 x 17 inch Cesium Iodide flat panel detector provide a veterinary practitioner all of their imaging needs.
- Integrated 32kW generator
- Standard 120V power outlet installation
- Premium collimator with exposure preset
- The auto thickness body part laser measurement
- Embedded APR control for kVp and mAs
Integrated Power Storage for Instant Activation
With a maximum output of 32kW and 400mA, the built-in power storage system delivers rapid, high-capacity power to the x-ray generator, ensuring the system is ready for immediate operation whenever needed.
Download Brochure Product inquiry

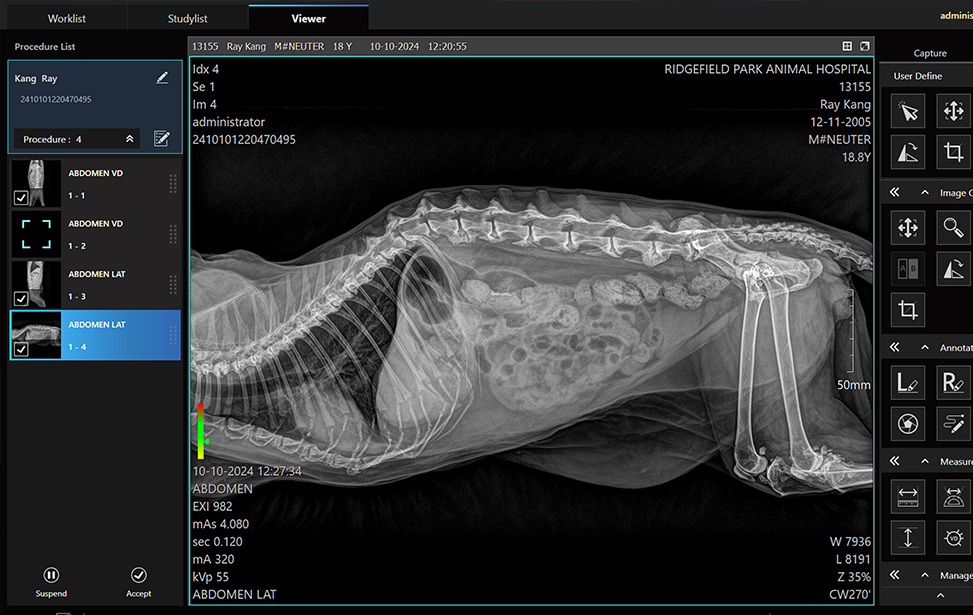

Advanced Imaging Processing Technology

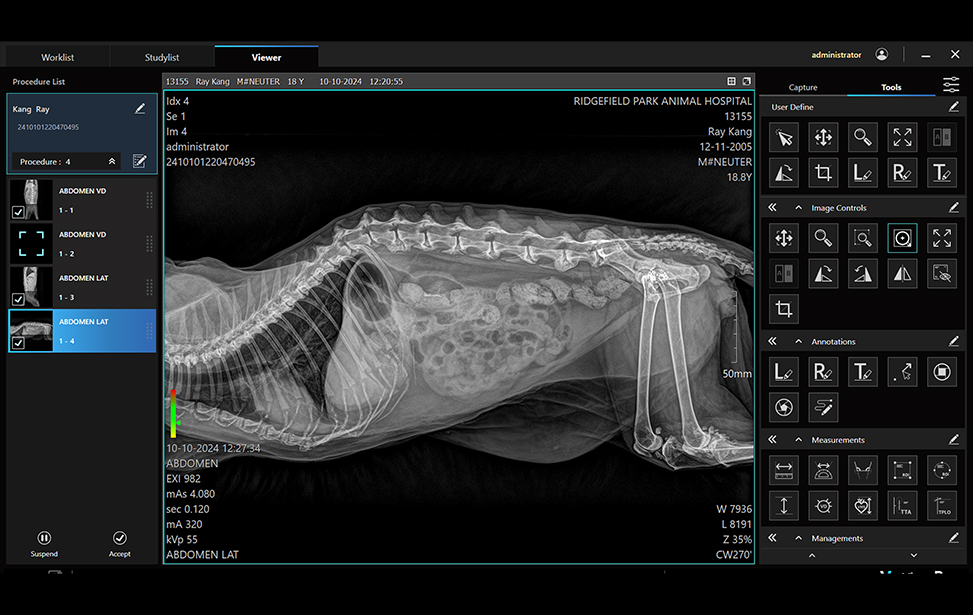

VetView Pro+ delivers premier image processing with High Dynamic Range, and by expanding the existing dynamic range, it increases the contrast ratio of the image.

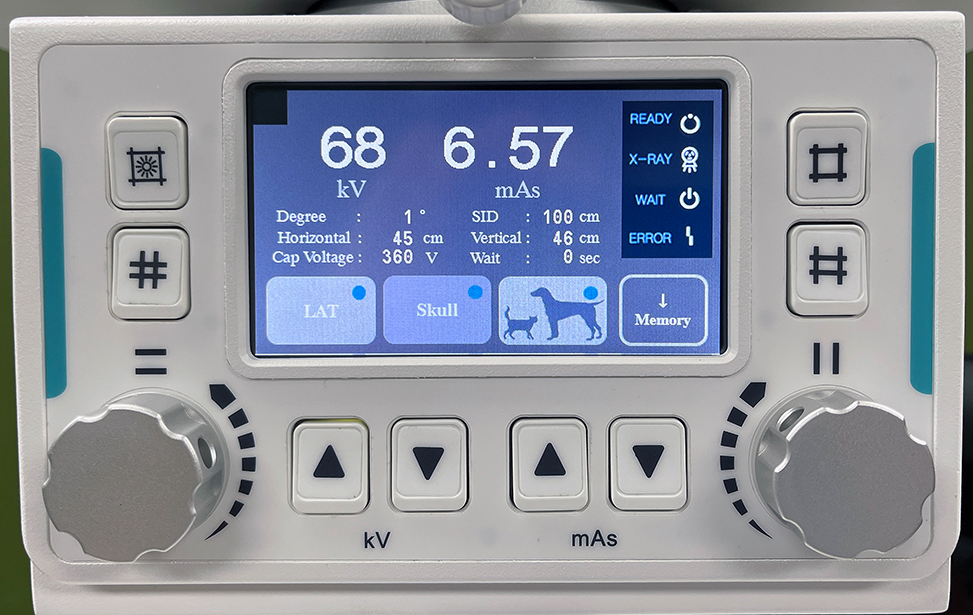

Premium Collimator with Advanced Controls
A large bore accommodates medium/large dogs and the elevating table facilitates animal positioning in center of bore to maximize image acquisition. The overall compact system design provides a more efficient and space-saving work environment.

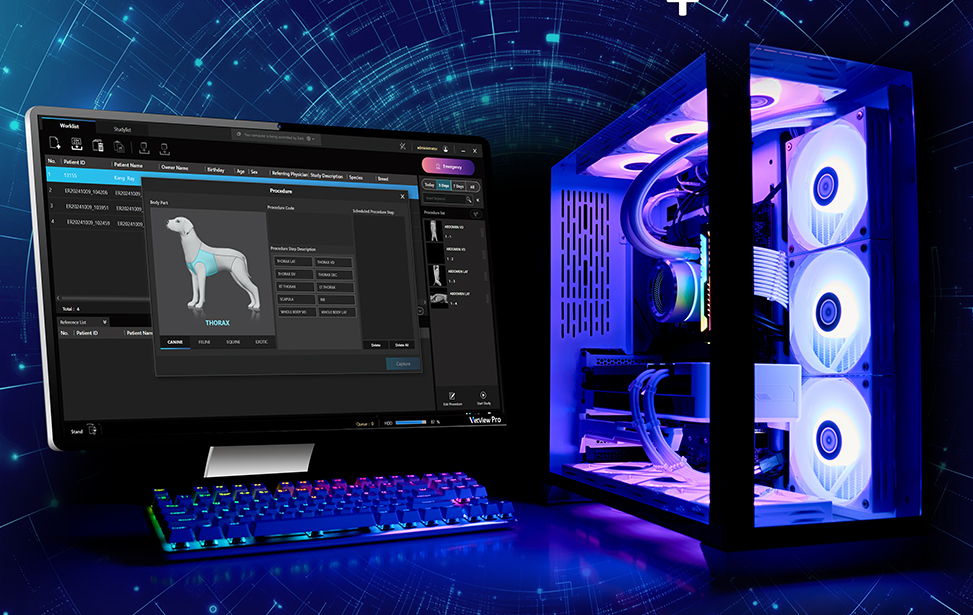

GPU-Powered AI Imaging Processing
Equipped with a high-performance GPU-powered PC, the system leverages AI-driven processing to minimize image noise, delivering clearer, more accurate images.
